Build a Production-Ready VCF Offline Depot in 5 Minutes

If you’ve stood up a VCF offline depot before, you know the drill. nginx or Apache vhost. TLS cert — Let’s Encrypt, internal CA, or self-signed. htpasswd (SDDC Manager rejects anonymous depots). The exact PROD/ directory tree from Broadcom KB 312168. systemd hardening. Firewall rules. A verify script that actually probes what the VCF Installer checks. And if your depot host is in a dark site — all of the above without internet on the depot host itself.

I’ve done this maybe a dozen times. Every single time, something is off — usually the http2 on; directive that doesn’t exist on Ubuntu’s nginx 1.24, or the docroot nested one level too deep so SDDC Manager throws “Path not found”, or forgetting to chown after VCFDT writes binaries as root. Each detour is a 30-minute fix. Then you go to do it again three months later on a different host and rediscover the same bugs.

This post walks through the VCF Offline Depot Generator — a browser-based tool I built specifically to stop redoing this work. By the end of the walkthrough you’ll have a deploy-ready depot for either an internet-connected host or a fully air-gapped one.

What the tool actually produces

You configure once (FQDN, cert strategy, OS, online vs offline) and the tool emits seven files:

File	What it does
install.sh	One-shot installer — preflight, packages, vhost, cert, htpasswd, directory tree, systemd hardening, smoke test
prep.sh	(Offline mode only) Runs on an internet-connected workstation, bundles all OS dependencies into deps.tar.gz for transfer
apache-vhost.conf or nginx-depot.conf	Web server config with TLS, basic auth, large-file delivery, security headers
directory-tree.txt	The full PROD/COMP/ structure per KB 312168 + observed VCFDT 9.1 output (23 components)
verify.sh	Probes every depot path SDDC Manager will check, with proper 200 / 404 / 401 colored output
index.html	Landing page with live status checks, component count, copy-to-clipboard URLs, and CLI test snippet
README.txt	Quickstart and gotchas specific to your chosen config

Walkthrough — internet-connected Ubuntu depot

The default mode generates a one-shot installer for a depot host that can reach the internet. This is the simplest scenario.

Step 1 — Configure the basics

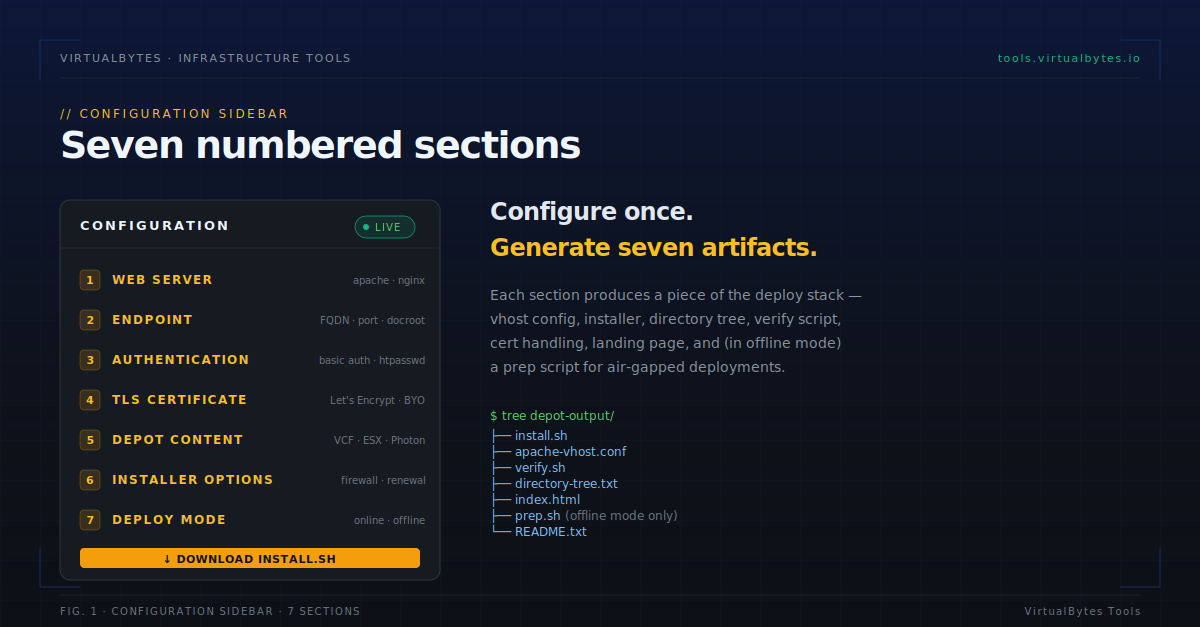

Open the tool. The left sidebar has seven numbered sections; you can ignore most of the defaults.

Set these four things:

• Web Server — Apache 2.4 or nginx. Either is fine; nginx is slightly faster for the large-file delivery VCFDT does, Apache is the more common default in enterprise environments
• Target OS — Ubuntu 24.04 LTS, Ubuntu 22.04 LTS, RHEL/Rocky 9, or Photon OS 5. The tool adjusts package names, paths, web user, and firewall tooling per OS
• Depot FQDN — must resolve from SDDC Manager. This becomes the TLS cert SAN, the vhost name, and the depot URL
• VCF Version — picks the BOM target. 9.1.0 has 23 components including new ones like VCF_OBSERVABILITY_DATA_PLATFORM, VCF_SALT, and VIDB

The output panel updates live as you type. Watch the install.sh body fill in with your FQDN, paths, and version pinning.

Step 2 — Pick a cert strategy

Three options:

Let’s Encrypt with HTTP-01. Simplest path. Works when your depot FQDN resolves on the public internet and port 80 is reachable from Let’s Encrypt’s servers. certbot handles everything inline with the Apache/nginx plugin.

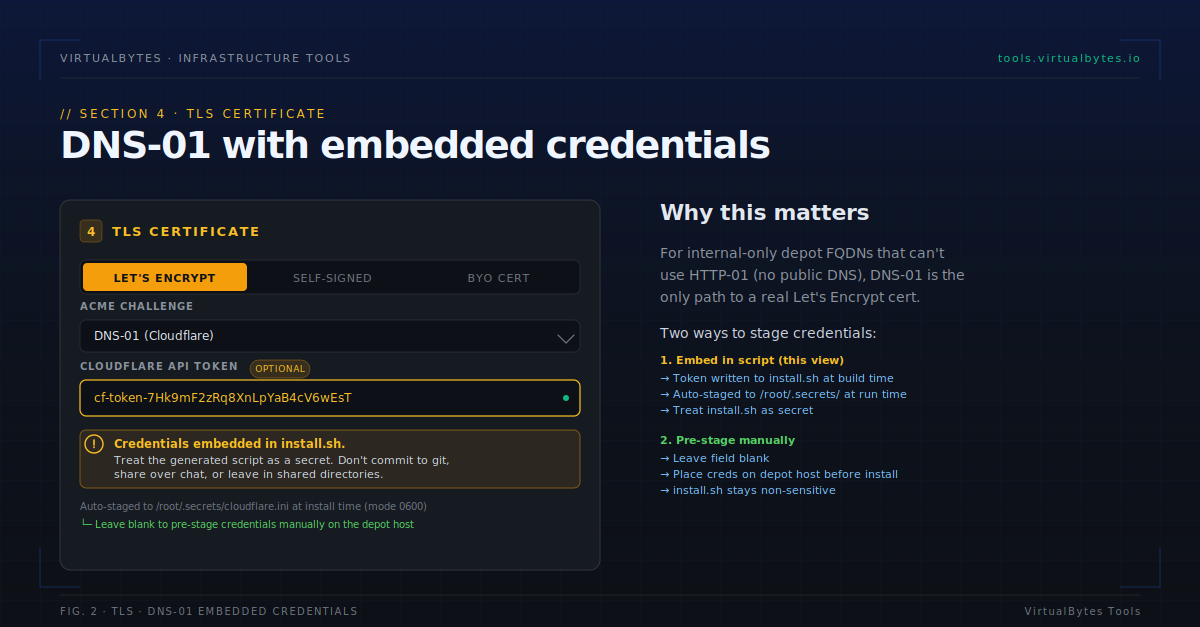

Let’s Encrypt with DNS-01. Use when the depot is on an internal-only FQDN that doesn’t resolve publicly. The tool supports Cloudflare and Route53. Paste your API token directly into the generator — it gets baked into install.sh and auto-staged to /root/.secrets/cloudflare.ini (mode 0600) at install time. The amber “Credentials embedded” warning appears the moment you fill in a token:

Self-signed or BYO. Self-signed generates a 4096-bit RSA cert valid for 825 days. BYO assumes you’ve placed your own cert and key at the OS-specific paths before running the installer. If you go this route, make sure VCF Operations trusts the cert chain (or the cert itself, for self-signed) — otherwise depot registration will fail at the TLS handshake.

For this walkthrough, leave it on Let’s Encrypt HTTP-01.

Step 3 — Keep Deploy Mode on “Online”

The Deploy Mode toggle in section 7 lets you switch between Online (one-shot) and Offline (two-script). We’ll cover offline mode below. For now, leave it on Online.

Step 4 — Download and run

Click Download install.sh. Transfer to your depot host and run as root:

scp install.sh [email protected]:/root/
ssh [email protected]
chmod +x install.sh
sudo ./install.sh

Or for non-interactive deploys (CI, Ansible, whatever):

sudo DEPOT_PASS='your-strong-password' ./install.sh

The installer walks through 10 steps with colored banner output: OS check, DNS resolution, package install, certbot, vhost deploy, configtest (this catches the http2 on; bug fast on older nginx), tree scaffold, htpasswd, systemd unit, smoke test. Idempotent — safe to re-run if anything fails.

When it finishes, you’ll see a green ✓ banner with the depot URL ready to register in VCF Operations — in VCF 9.x, depot settings are configured centrally in VCF Ops, and SDDC Manager picks them up automatically.

Step 5 — Verify

Run verify.sh (generated alongside install.sh) to probe every path SDDC Manager will hit:

sudo /usr/local/sbin/vcf-depot-verify.sh

You’ll get a colored matrix of 26 component paths plus the catalog files and HCL data. Green ✓ for populated, yellow ○ for “not entitled / expected empty” (because VCFDT only downloads what your Broadcom token has access to), red ✗ for actual failures.

Step 6 — Populate with VCFDT

The depot is built but empty. Now download the binaries:

cd /opt/vcf-download-tool
./vcf-download-tool.sh download \
  --token <your-broadcom-token> \
  --version 9.1.0.0

VCFDT writes directly into the depot structure. One gotcha here: VCFDT runs as root and writes files owned by root. The web server runs as www-data (Ubuntu) or apache (RHEL). After VCFDT finishes, fix ownership:

chown -R www-data:www-data /var/www/depot
chmod -R u=rwX,g=rX,o= /var/www/depot

(The generated README includes this; don’t skip it or you’ll get 403s on every binary.)

Step 7 — Register the depot in VCF Operations

In VCF 9.x, depot configuration is centralized in VCF Operations (the artist formerly known as Aria/vRealize Operations). SDDC Manager no longer holds the depot URL and credentials directly — instead, it queries VCF Ops as the source of truth. This is a meaningful architectural change from VCF 5.x and earlier where depot settings lived in the SDDC Manager UI directly.

To register your depot, log into VCF Operations as an admin and navigate to:

Fleet Management → Lifecycle

From there, register the depot (also called a “software repository” or “VCFDT depot” depending on the 9.x build you’re on) with these settings:

• Type: Offline depot (also called “VCF Download Tool Depot” in some 9.1 builds)
• URL: https://depot.example.com/ (whatever FQDN you set in the generator)
• Username: vcfdepot (or whatever you configured in section 3)
• Password: the password you set during install
• Verify TLS: on (off only for self-signed certs you haven’t imported into the VCF Ops trust store yet)

VCF Ops runs a connection test in the background — pings the depot endpoint with the provided credentials, fetches the productVersionCatalog.json, validates the structure. Green check means the depot is registered and discoverable across the fleet.

Step 8 — SDDC Manager auto-connects via VCF Ops

Here’s the nice part: once the depot is registered in VCF Ops, every SDDC Manager instance in the fleet inherits it automatically. There’s no per-SDDC-Manager configuration step.

To verify in SDDC Manager UI:

Lifecycle Management → Release Versions

You should see available bundles populated from your depot within a minute or two of the VCF Ops registration. If you see “No bundles available” after 5 minutes, the depot is reachable but empty — go back and run VCFDT to populate it (step 6). If you see “Repository unreachable”, check the VCF Ops connection test first, then DNS resolution from the SDDC Manager appliance to your depot FQDN.

The generated index.html landing page is also worth bookmarking — visit https://depot.example.com/ in a browser and it’ll show live status (probes the 23 component dirs in parallel), a count of populated components, copy-to-clipboard URLs, and a ready-to-paste curl test command.

Walkthrough — air-gapped depot (two-script workflow)

The above flow assumes the depot host can reach the internet. Often it can’t — regulated environments, government clouds, fully isolated security zones. Internal CA, no egress, no Let’s Encrypt, no apt-get from public mirrors.

Switch the Deploy Mode toggle in section 7 to Offline. Two things happen immediately:

1. The cert strategy auto-forces BYO (Let’s Encrypt can’t reach the ACME server from a dark site — there’s no point pretending otherwise)
2. A new prep.sh artifact appears in the output tabs

How the offline workflow runs

The split:

Phase	Where	What
1. Prep	Internet-connected workstation matching depot OS	Run prep.sh → bundles all OS packages into deps.tar.gz
2. Transfer	Removable media / one-way diode / authorized sftp	Carry deps.tar.gz + install.sh + your cert files
3. Install	Dark-site depot host	Run sudo ./install.sh --offline /root/deps.tar.gz
4. Populate	VCFDT on jumphost, then rsync to depot	(VCF binaries are 80-100 GB, separate transfer)

Critical: same-OS-version rule

prep.sh enforces a strict OS version check. You cannot prep on Ubuntu 22.04 to deploy to an Ubuntu 24.04 depot. Package versions diverge across releases and dpkg will reject the bundle. The prep script refuses to continue without explicit confirmation if there’s a mismatch. Match the workstation OS to the depot OS exactly.

Walking through it

On the internet-connected prep host (same OS as your dark depot):

# Stage your cert and key in the cwd before running prep.sh
# (they get auto-bundled into the tarball)
cp depot.crt depot.key .

sudo ./prep.sh
# → Produces ./deps.tar.gz (typically 15-40 MB)

Transfer everything to the dark site by whatever means your security policy allows. Then on the depot host:

# Stage the cert + key at the OS-expected paths
mv depot.crt /etc/ssl/certs/depot.internal.crt
mv depot.key /etc/ssl/private/depot.internal.key

# Run the installer in offline mode
sudo ./install.sh --offline /root/deps.tar.gz

The installer detects offline mode and uses dpkg -i / rpm -Uvh from the extracted bundle instead of repos. No internet required at any point on the depot host.

The bundle does not include VCF binaries themselves — those are 80-100 GB and need to come over separately. VCFDT runs on a different internet-connected host with your Broadcom token, then rsync or sneakernet to the depot. The README that ships with the install covers this.

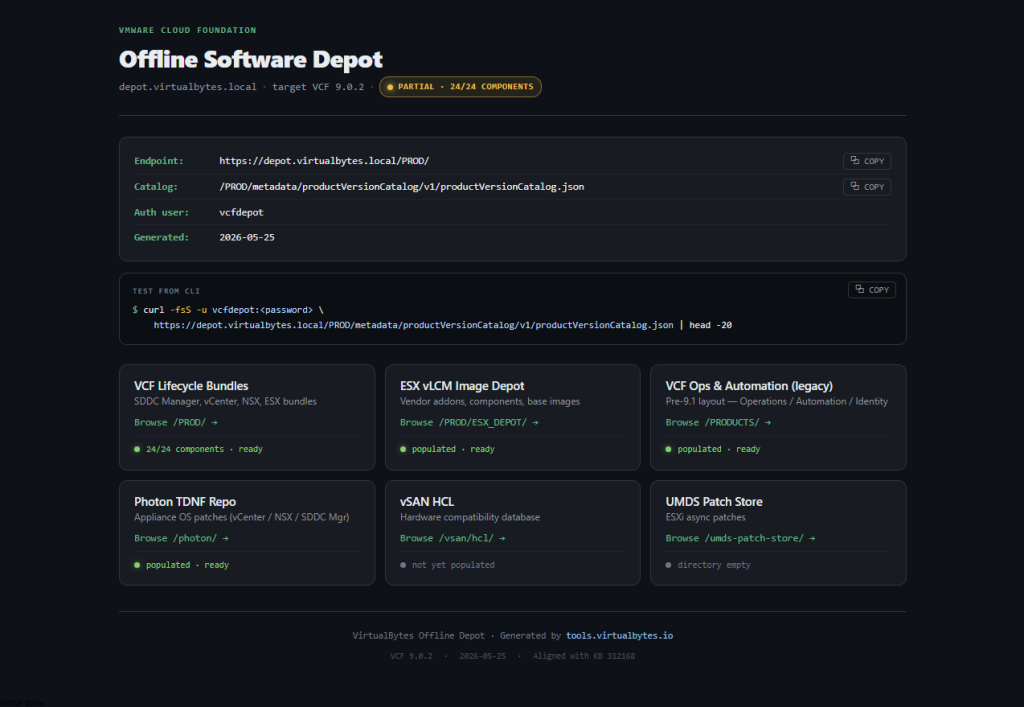

Example of Web Interface (This demo is on Ubuntu 26.04 LTS)

Things that bite people

A short list of mistakes I’ve made personally and now bake into the generator so you don’t have to:

What it doesn’t do

Setting expectations honestly:

• It doesn’t download VCF binaries. That’s VCFDT’s job. The tool builds the infrastructure (web server, directory tree, auth, certs); VCFDT writes the binaries into the structure the tool scaffolded
• It doesn’t manage cert renewal forever. For Let’s Encrypt, it installs a systemd timer that renews twice daily. For BYO certs, you’re on your own — set a calendar reminder
• It doesn’t multi-region replicate. Each depot is independent. If you want multiple depots in different regions for latency or compliance, run the generator once per region (you can re-use the same config)
• It doesn’t manage upgrades. When VCF 9.2 drops in 2027 and adds three more components, you’ll need to either regenerate the depot or manually mkdir -p the new paths. I’ll update the tool’s BOM target list when 9.2 ships

Wrap

The tool is at tools.virtualbytes.io/vcf-offline-depot-generator. Free, no signup, all browser-side processing, zero tracking. Full help guide at VCF Offline Depot Help Guide.

If you’re running multiple VCF deployments in dark sites and want a paired set of tools, also worth checking:

• VCF Reference Architecture Builder — diagram the management plane this depot will deploy
• VCF Upgrade Path Advisor — plan the hop sequence from your current VCF version to the target the depot will serve
• IP Subnet Planner — carve management/vMotion/vSAN/TEP CIDRs before the deploy

Until then: stop hand-rolling depots. 🙂
